Project Description

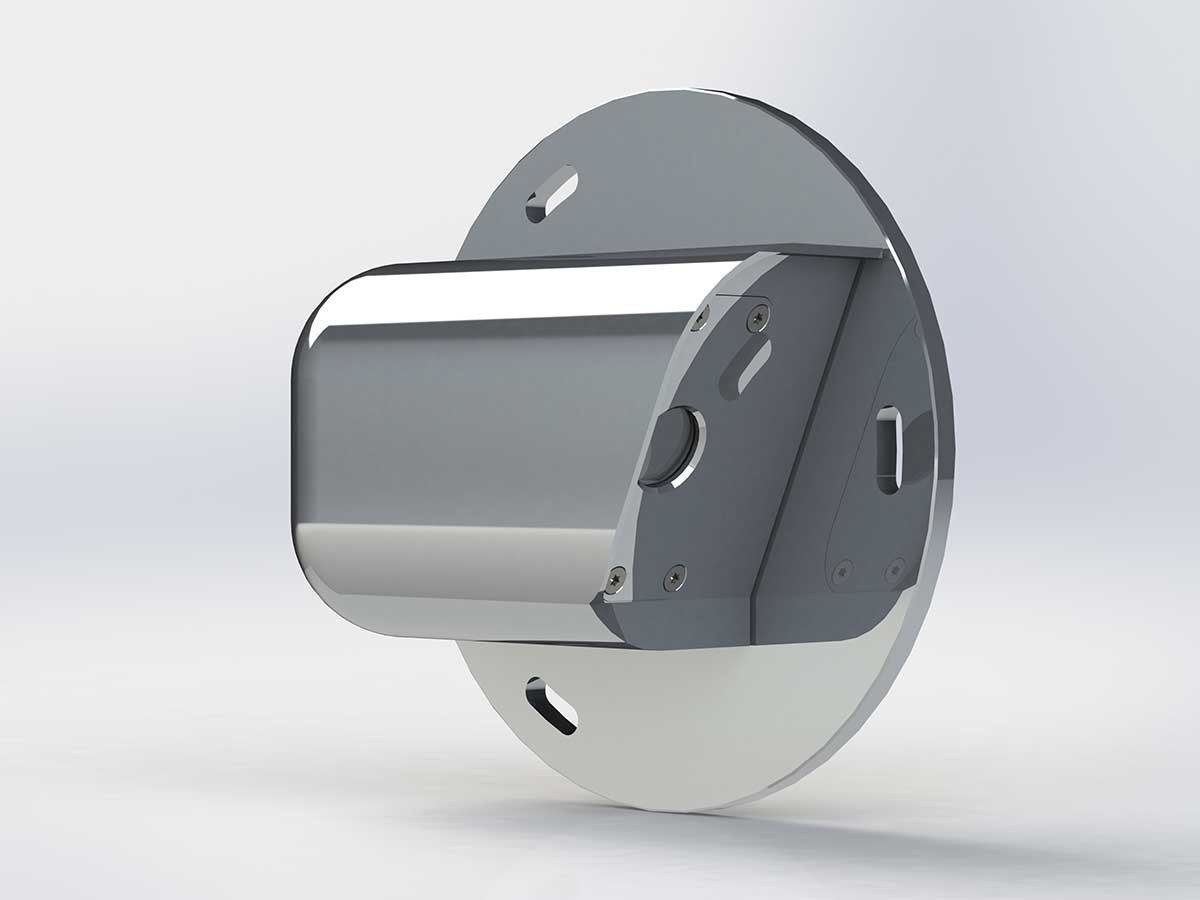

Network camera with analogue interface
The BHNC3 camera is designed for professional surveillance as well as rear-view mirror applications.
The configurable active image area (Region of Interest) allows for retrospective adjustment of the camera.
The camera can be configured customer specifically via Ethernet.
Technical details
| Features | |
|---|---|
| Image sensor | 1/3 inch CMOS sensor with 1Megapixel Superior low-light performance |
| Ethernet | 10BASE-T / 100BASE-TX |
| Video frame rate | Full resolution: 1280 x 960 @ 45fps Full frame rate: 60fps @1280 x 720 |
| Digital video output (supported codecs) | H.264 (MPEG-4 Part 10) MJPEG |
| Transmission protocol | RTP |
| Analog video output | 2 times coaxial video output (75Ω), 720×576 pixel, PAL system |
| Mirror function | Horizontal / Vertical |
| Heating | Automatic / Manual |
| Cooling | Passive |
| Glass | Saphire glass, exchangeable |
| Miscellaneous | High Dynamic Range Auto white balancing Auto exposure Excellent low-light performance |
| Interfaces (arbitrary) | |
|---|---|
| Power supply camera | Customer-specific over pigtail |
| Analog video out | Customer-specific over pigtail |
| Heater ON | Customer-specific over pigtail |
| Ethernet | Customer-specific over pigtail |
| Power supply heating | Customer-specific over pigtail |
| Power supply | |
|---|---|
| Input range | +12VDC .. +24VDC |
| Maximum power consumption camera | 2W |
| Maximum power consumption heater | 60W |
| Mechanical properties | |
|---|---|
| Housing | Aluminium case |
| Protection class | IP67, front and rear |
| Engineering standards | |
|---|---|
| General | EN50155 |
| EMC | EN50121-3-2 |
| Shock and vibration | EN61373 Category 1 Class B |
| Environment | |
|---|---|
| Operating Temperature | -40°C … +70°C Class TX |
| Storage temperature | -40°C … +85°C |
