Project Description
USB Mass Storage

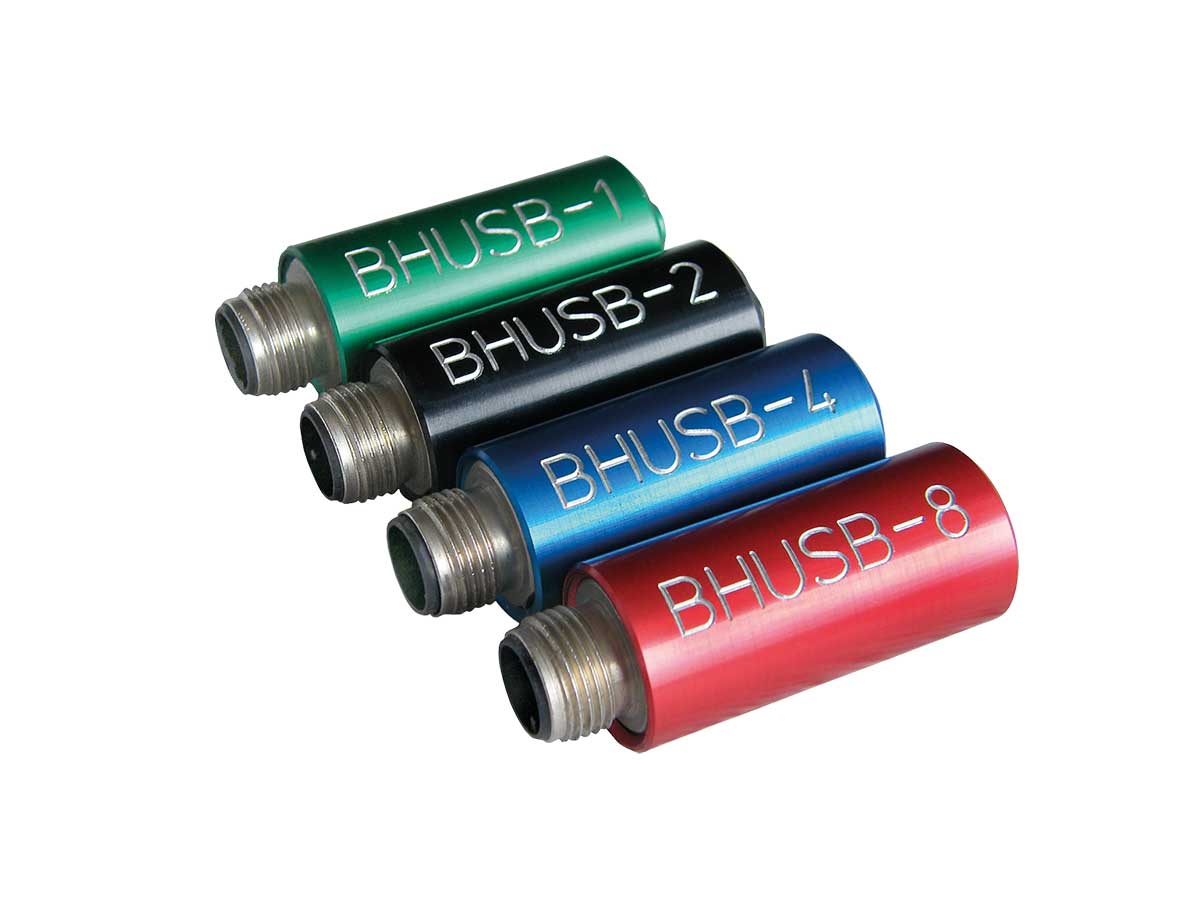

BHUSB ist ein robuster USB Flash Speicher mit einem Aluminiumgehäuse und einem M12 Steckverbinder.
Technische Details
| Platform | |
|---|---|
| Supported operating systems | Microsoft Windows and Linux |
| Specifications | |
|---|---|
| Storage Capacity | 1GB / 2GB / 4GB / 8GB / 16 GB / 32GB |
| Data retention | 10 years |
| Write and erase cycles | > 100K (with 1bit/512Byte ECC) |
| Performance | Up to 32MB/sec |
| Power supply | DC 5V±10% |
| Features | |
|---|---|
| Full compatible with USB 2.0 | |
| LED access indicator | |
| Dual flash | |
| Wear leveling | |
| Additional bad block memory | |
| Single-Level-Cell (1bit per cell) | |
| Easy plug and play installation | |
| Housing available in different colours |
| Interfaces | |
|---|---|
| USB 2.0 | M12 (5-pin) a-coded |
| USB 3.0 | M12 (8-pin) x-coded |
| Mechanical properties | |
|---|---|
| Housing | Aluminium case |
| Dimensions (W x dia) | 64mm x ø18mm |
| Weight | 18,5g |
| Protection class | IP67 |
| Engineering standards | |
|---|---|
| General | EN50155 |
| EMC | EN50121-3-2 |
| Shock and vibration | EN61373 Category 1 Class B |
| Environment | |
|---|---|
| Storage temperature | -40°C … +85°C |
